Plexi Illuminated Letters Wiring Guide

Wiring plexi illuminated letters requires a correctly rated LED power supply, separate low-voltage circuits where needed, protected cable routes, and reliable waterproof connections. First confirm the LED system voltage and total wattage, then size the driver with spare capacity, connect each letter with correct polarity, and test the installation before sealing the facade penetrations. For outdoor signage, use weather-resistant components and have final mains connections completed by a qualified electrician.

Understand the System Before Wiring

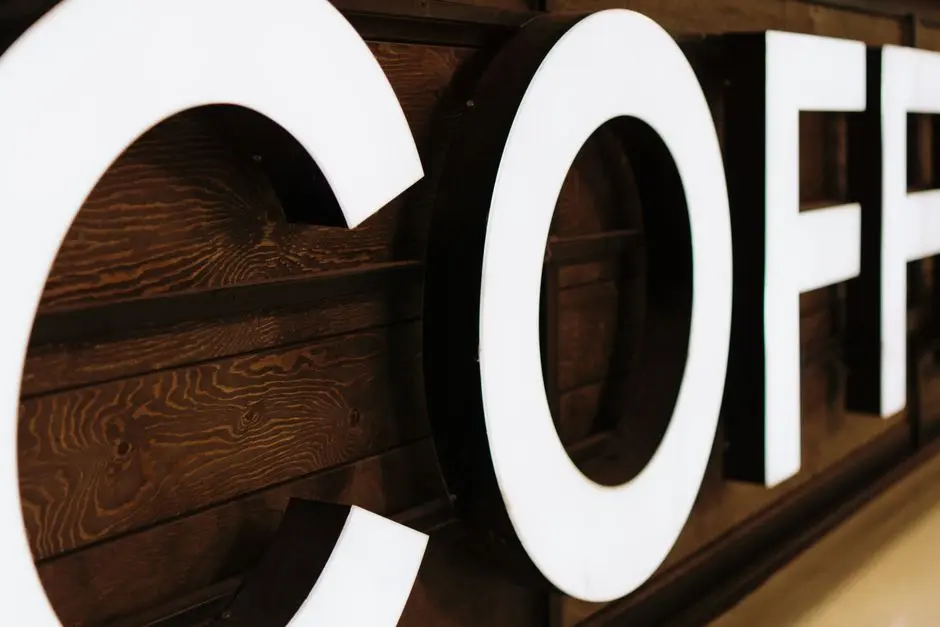

Acrylic plexi illuminated box letters typically combine a shaped acrylic face, a fabricated side return, internal LED modules, and a rear mounting structure. The visible letter is powered by a concealed low-voltage system, while the driver or transformer connects to the building supply. AmonRa Signage BV manufactures custom signage solutions for commercial facades, including the explore our Profile A1 - Acrylic Plexi Illuminated product range.

Before installation, check the project drawings and the product documentation. Confirm whether the LED modules operate at 12 V DC or 24 V DC, identify the driver location, and verify the cable exit points in relation to the facade structure. Letter depth, spacing, fixing rails, and access for maintenance all influence the wiring route.

Calculate Power and Select the Driver

Start by adding the rated wattage of every letter and illuminated component. The driver should not operate continuously at its maximum output, so allow a practical reserve of approximately 20% to 30% when selecting its capacity. For example, a sign rated at 100 W should generally be paired with a driver that provides more than 100 W, subject to the manufacturer’s technical requirements and local electrical regulations.

• Check voltage: The driver output must match the LED system voltage exactly.
• Check total load: Add the wattage of all letters, modules, and optional lighting elements.
• Allow spare capacity: Avoid overloading the driver during continuous operation.
• Plan access: Place drivers where they remain ventilated and serviceable.
• Separate circuits when useful: Large signs may benefit from multiple drivers or independently fused zones.

Do not connect a 12 V LED circuit to a 24 V driver. This can damage modules and create an unsafe failure. Likewise, an undersized driver may cause voltage drop, flicker, overheating, or uneven brightness across the sign.

Recommended Wiring Layout

For multiple letters, a parallel connection is normally preferred over a long series chain. Each letter receives the intended supply voltage, making the system easier to diagnose and reducing the risk that one failed component switches off the entire sign. Use appropriately rated two-core cable for low-voltage DC wiring, maintaining consistent polarity from the driver to each letter.

• Route positive and negative conductors separately and label them clearly.
• Keep cable runs as short as practical to reduce voltage drop.
• Use junction boxes or connectors suitable for the installation environment.
• Secure cables so they cannot rub against sharp metal edges or become trapped behind the letters.
• Seal facade penetrations with compatible weatherproof materials after testing.

For longer distances, calculate voltage drop rather than relying on visual inspection. A cable that is too thin or too long can make distant letters appear dimmer than those closest to the driver. A qualified installer should also confirm protective earthing, circuit protection, isolation, and compliance with applicable European and national requirements.

Outdoor Protection in Benelux Conditions

Signage in Brussels, Antwerp, Ghent, Rotterdam, Amsterdam, and other European locations must withstand rain, wind, temperature changes, and repeated cleaning. Specify components with an appropriate IP rating; for exposed outdoor applications, an IP67-rated enclosure or connection system can provide protection against dust and temporary water immersion when correctly installed. The complete sign assembly, cable glands, junction boxes, and driver location should be assessed together rather than relying on one component’s rating.

Local facade regulations may affect cable visibility, projection, illumination levels, installation height, and permission requirements. Flanders, Brussels, Dutch municipalities, and other European authorities can apply different rules. Confirm requirements with the property owner and local authority before drilling or energising the sign.

Testing and Commissioning Checklist

Test the system systematically before final handover. Check polarity and continuity with the power isolated, inspect every connection for secure terminals, and confirm that cables are not pinched. Energise the system only after the low-voltage side has been inspected and the mains side has been completed by a qualified professional.

• Measure the driver output against the specified voltage.
• Confirm consistent brightness across all letters.
• Inspect for flicker, heat, buzzing, or unusual odour.
• Check that all covers, glands, and seals are properly fitted.
• Record driver locations, circuit labels, and maintenance access points.

For a broader overview of construction, illumination, materials, and installation planning, read our hoogwaardige Plexi Illuminated Box Letters: A Practical Guide. Careful planning at the manufacturing stage helps AmonRa Signage BV deliver a clean facade appearance while keeping future servicing practical.

Frequently Asked Questions

What voltage do plexi illuminated letters use?

Many LED letter systems use low-voltage DC, commonly 12 V or 24 V, but the correct voltage depends on the selected LED modules. Always follow the product documentation.

Can several illuminated letters share one driver?

Yes, provided the driver voltage matches the LED system and its wattage capacity exceeds the combined load with suitable reserve. Large installations may require multiple drivers or circuits.

Are plexi illuminated letters suitable for outdoor use?

They can be suitable when the complete assembly uses weather-resistant materials, protected connections, and an appropriate IP rating. Outdoor installation must also meet local facade and electrical requirements.
